Evaluating A2C versus REINFORCE with baseline

With our implementation of A2C ready to go, let’s see it in action.

The setup

Let’s set the ground rules:

• This time we don’t do self-play, but instead a pre-training run where we have our model face off against the RandomPunisher.
• We use AdamW as the optimizer with a learning rate of \(10^{-4}\).
• Value loss weight is \(\alpha = 1.5\); this is higher than the common choice of 0.5 since we are pretraining and want the model to learn good values quickly.
• Entropy bonus is \(\beta = 0.05\), as before.
• The reward discount rate is \(\gamma=0.9\). This is on the lower end of common choices and makes the model pay most attention to the endgame, which is exactly what we want when training tactics.
• Batch size is 50 games, after which the model is updated.
• As before, each tick on the x-axis of the training plots represents 1000 games played.

The results

A2C

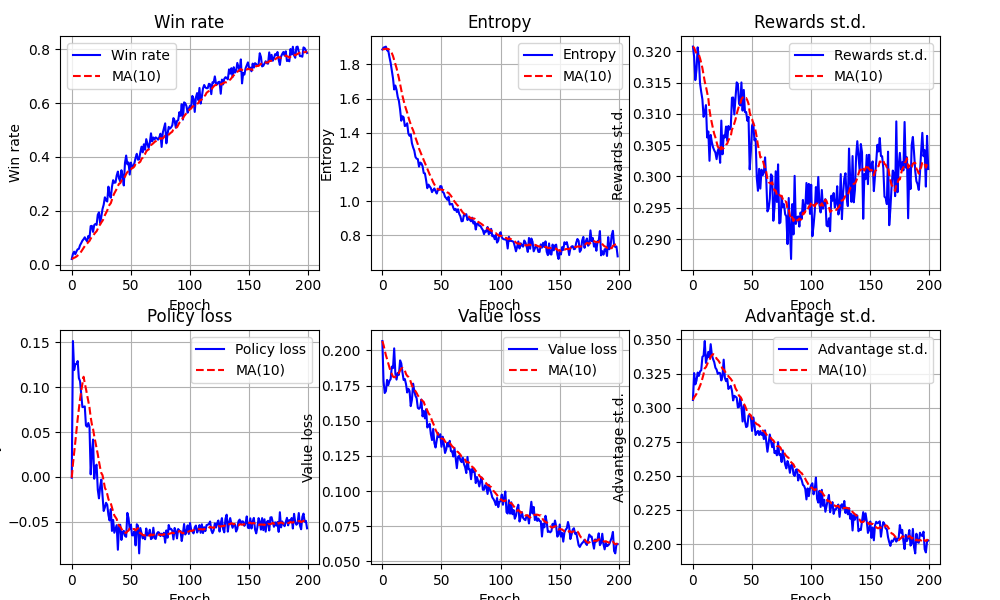

Here is the training plot of the run, up until around 200k games played:

We can immediately see that this was a very smooth ride with very little noise. The win rate increases steadily from basically 0 to the 50% mark at around 80k games, and then further rises to 80% at 200k games.

The entropy bonus did its job and kept the entropy stable at around 0.75 after an initial drop.

The value network started learning useful information almost immediately, with value loss dropping consistently over the run from 0.2 to 0.06. As a result, the standard deviation of the advantage also kept falling: after around 50k games, it was already lower than that of the raw rewards and continued improving. This is exactly the variance reduction we want to see as it gives us more stable policy gradients.

REINFORCE with baseline

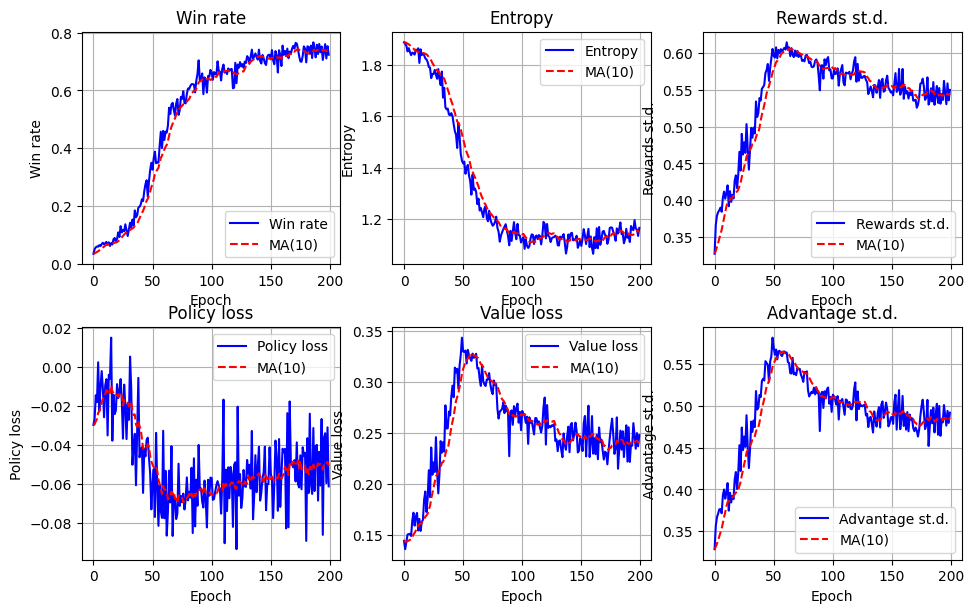

For comparison, let’s run the exact same test also with REINFORCE with baseline. That is, we only change the BOOTSTRAP_VALUE parameter to False and leave all other options unchanged. Here are the training plots:

At first glance, the results look similar: the win rate has a similar trend, even crossing the 50% mark earlier than with A2C. However, above around 60%, progress noticeably slows down, and the final win rate after 200k games is closer to 75%.

The value loss is clearly much higher and also needs around 50k games to even start decreasing. As a result, the variance reduction for the advantage is much weaker here, reducing the standard deviation of 0.55 for the returns only to around 0.48 for the advantage.

This higher variance in the advantage also leads to a noisier policy loss.

All this aligns with our understanding: the baseline learning is much slower due to the high variance of the Monte Carlo sampling. As a result, the model has a poorer value estimate, which in turn makes it harder for it to improve its policy.

There is one confounding factor: despite using the same entropy bonus, entropy is somewhat higher here at around 1.1. It’s possible that letting entropy decay further could strengthen exploitation and therefore improve the performance. Nevertheless, the worse value approximation will remain a significant drawback.

The shootout

Let’s see some actual competition! Using the tournament.py script from the repo, we can run a round-robin tournament where each model plays 2000 games (1000 going first and 1000 going second) against every other one. As described above, each model was trained in 200k games against the RandomPunisher.

Below are the resulting win rates. Each cell shows the win rate of the left model against the top model. There are very few drawn games, as adding up the numbers shows.

The results confirm our observations: the A2C trained model has higher win rates both against its RwB competitor as well as against the RandomPunisher.

This would be a good point to switch to self-play, perhaps reduce the value loss weight and increase the reward discount rate to start learning longer-horizon strategies. The superior value function of the A2C model serves as an excellent starting point for that.
